Compact Size Softgel Encapsulation Machine for R&D and Small-Batch Manufacturing
Description of JL-75 Compact Softgel Encapsulation Machine
The JL-75 softgel machine is a miniaturized production line for lab use, R&D, and small-batch manufacturing. It offers high cost-effectiveness without compromising performance.
Built on the same structural principles as industrial-scale equipment, it ensures reliable, consistent output. Features include a standalone cantilever touchscreen, high precision, and strong seam quality.
Two mold sizes are available. The 115×125 mm mold delivers up to 20,000 softgels per hour, making the system fully suitable for small-scale production.
Technical Parameters of JL-75 Softgel Encapsulation Machine
| Die Roller Speed |
0-5 Rpm |
| Die Roller Size |
Dia. 64 x W75 mm |
| Production Capacity |
8# OV 8,000 pcs/hour (500mg) |
| Power |
2Kw |
| Filling Volume |
0-1.2 ml |
| Precision of Filling |
+/-1.5% |
| Weight |
450Kgs |
| Dimension |
L900xW700xH1600 mm |

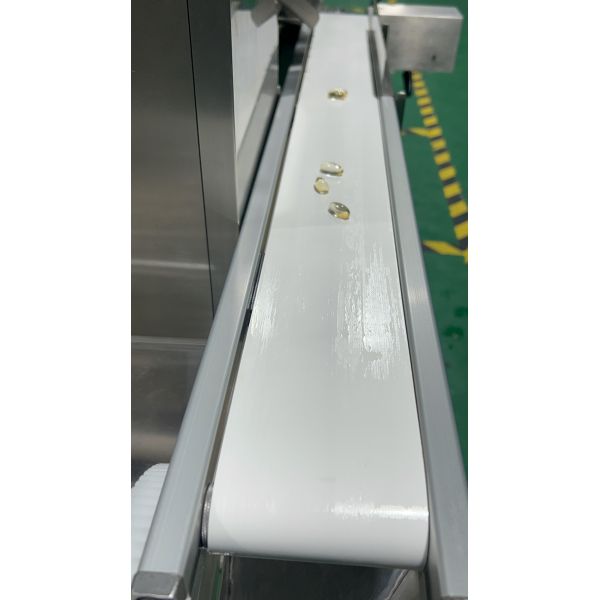

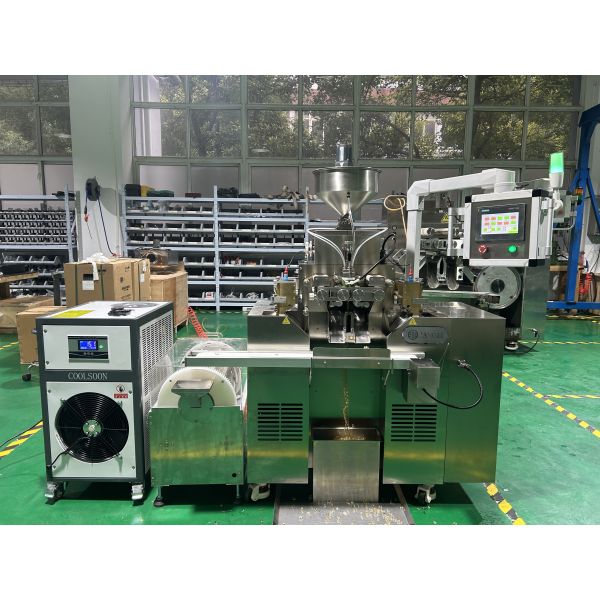

Images of JL-75 Softgel Encapsulation Machine
Packing and Shipping of JL-75 Softgel Encapsulation Machine
FAQ
Q1: Can the machine run 24/7?
A: Yes, it’s built for long-term stable operation without interruptions.
Q2: Is switching capsule formats difficult?
A: Not at all. One-click parameter recall and quick mold changes make it easy.
Q3: Is it audit- and export-ready?
A: Fully compliant with GMP, FDA, and 21 CFR Part 11, ready for international markets.
Q4: Are maintenance costs high?
A: No, the mature design and low power consumption keep long-term costs manageable.
